제품 상세 정보:
|
| 수명주기: | 100000 사이클 | 전압 및 전류: | 250V 16A |
|---|---|---|---|
| 연락처 유형: | 일반적으로 닫히거나 일반적으로 열려 있습니다 | 스위치 유형: | 자동 재설정 또는 수동 재설정 |
| 온도 범위: | 0-250C | 사례: | 베이클라이트 |
| 강조하다: | 0-250℃ Temperature Range Bimetallic Thermostat,100000 Cycles Temperature Controller,Bakelite Case Thermal Overload Protector Switch |
||
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
|---|---|
| Open temperature | (30~150)±5°C; 5°C a step |
| Reset temperature | 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available. |
| Life times | 10000 cycles |
| Size | L15mm W7.1mm H3.8mm |
| Lead wire | #22 3266, end half tripping, length is 70mm (customizable) |
| UL File no | E487478 |
| CQC certificate no | CQC16002142880 |
| TUV certificate no | B160592241002 |

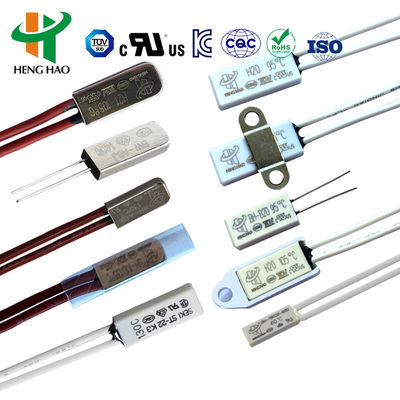

| Model | Case | Length(mm) | Width(mm) | Height(mm) | Voltage & Current | Lead Wire |
|---|---|---|---|---|---|---|
| H20 | Plastic | 18.5 | 8 | 4 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A | #20 3135, end 5mm half tripping, length is 70mm (customizable) |

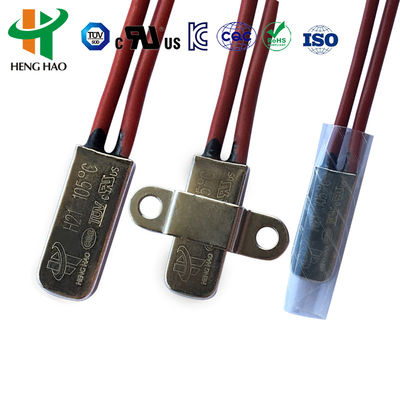

| H21 | Metal | 18.5 | 7.3 | 3.8 | ||
| H21 | Metal | 20 | 8 | 4 | AC250V 20A | #16 3135 |

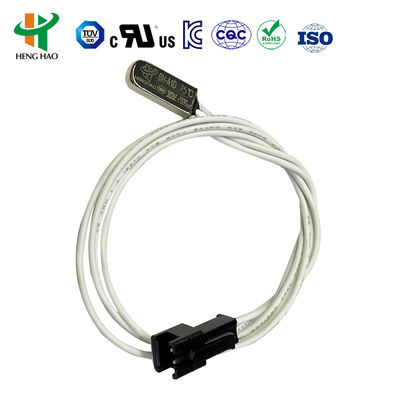

| BH-A1D | Metal | 15 | 6.6 | 3.2 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V | #20 3135, #22 3266, #22 3135, end 5mm half tripping, length is 70mm (customizable) |

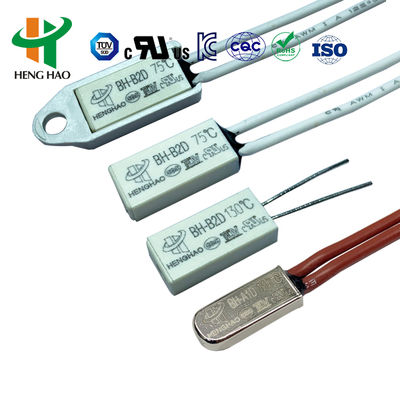

| BH-B2D | Plastic | 15 | 7.1 | 3.8 | ||

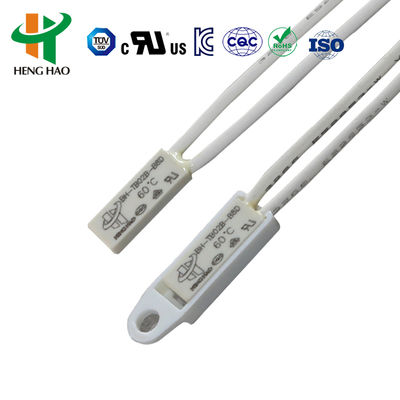

| BH-TB02B-B8D | Plastic | 15 | 5.2 | 2.4 | DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A | 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70mm (customizable) |
| Code | Temperature | Code | Temperature |
|---|---|---|---|
| 30 | 30℃ | 100 | 100℃ |
| 35 | 35℃ | 105 | 105℃ |
| 40 | 40℃ | 110 | 110℃ |
| 45 | 45℃ | 115 | 115℃ |
| 50 | 50℃ | 120 | 120℃ |
| 55 | 55℃ | 125 | 125℃ |
| 60 | 60℃ | 130 | 130℃ |
| 70 | 70℃ | 135 | 135℃ |
| 75 | 75℃ | 140 | 140℃ |
| 80 | 80℃ | 145 | 145℃ |
| 85 | 85℃ | 150 | 150℃ |
| 90 | 90℃ |
These thermostats serve as effective security protectors and alarm devices for:
Enforced types (3.5MPa pressure rating) are suitable for build-in installation in plastic coated motors.
These universal and enhanced protectors feature large metal casings containing:
During abnormal operation, rising temperatures trigger the bimetallic components to quickly open the contact points and disconnect the circuit. Normal operation resumes automatically when temperatures return to safe levels.
This product holds UL, CQC, TUV and RoHS certifications.
