| 모델번호: | PT1000 | 연락처 유형: | 일반적으로 닫히거나 일반적으로 열려 있습니다 |
|---|---|---|---|
| 스위치 유형: | 자동 재설정 또는 수동 재설정 | 사양: | 12*16 |
| 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k | 저항 변화: | ± 1, ± 2, ± 3, ± 5, ± 10 |
| 재료 계수: | 2500 ~ 5000K | 산란 계수: | ≥0.8mw/°C |
| 열 시간 상수: | ≤25s | 작동 온도: | -40°C~+250°C |
| 정격 출력: | 50mW | 케이스 유형: | 포크 헤드, O링 헤드, 물방울 헤드, 금속 케이스, 나사산 구리 케이스, 주입 헤드 |
| 리드 와이어: | #24 30# 2651, UL4411 28#, 이중 배선 도체 | 터미널 유형: | 요구 사항에 따라 리벳을 박을 수 있습니다. |
| 운송 패키지: | 2000pcs/카톤 | ||
| 강조하다: | PT1000 temperature sensor probe,NTC thermistor temperature sensor,PT100 temperature probe with warranty |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

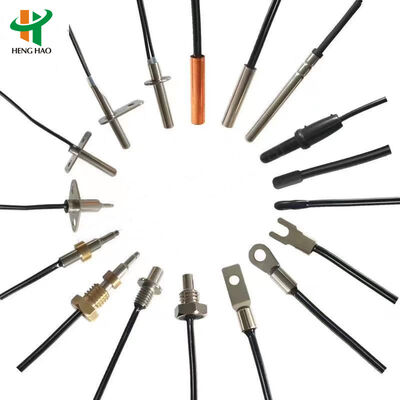

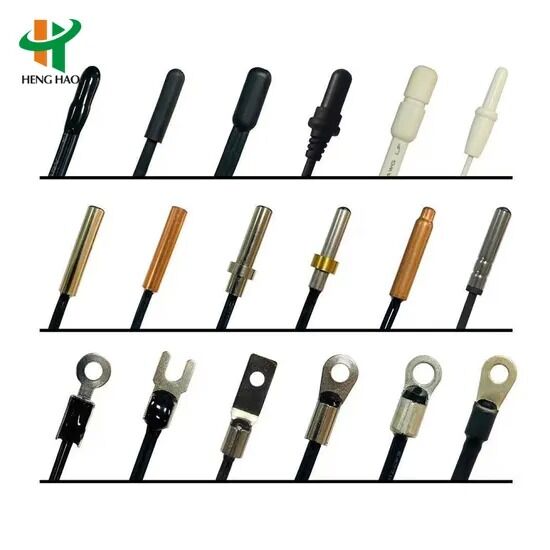

| Case and head | Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals | |
Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.
Note: This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
Auto reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.
| Open temp. | Reset temp. | Open temp. | Reset temp. | Open temp. | Reset temp. |
|---|---|---|---|---|---|
| -20ºC±5ºC | 5ºC±5ºC | 95ºC±5ºC | 80ºC±5ºC | 205ºC±5ºC | 175ºC±10ºC |
| -15ºC±5ºC | 5ºC±5ºC | 100ºC±5ºC | 80ºC±10ºC | 210ºC±5ºC | 180ºC±10ºC |
| -10ºC±5ºC | 5ºC±5ºC | 105ºC±5ºC | 85ºC±10ºC | 215ºC±5ºC | 185ºC±10ºC |
| 0ºC±5ºC | -10ºC±5ºC | 110ºC±5ºC | 90ºC±10ºC | 220ºC±5ºC | 190ºC±10ºC |
| 5ºC±5C | -5ºC±5ºC | 115ºC±5ºC | 95ºC±10ºC | 225ºC±5ºC | 195ºC±10ºC |
| 10ºC±5ºC | 0ºC±5ºC | 120ºC±5ºC | 100ºC±10ºC | 230ºC±5ºC | 200ºC±10ºC |
| 15ºC±5ºC | 5ºC±5ºC | 125ºC±5ºC | 105ºC±10ºC | 235ºC±5ºC | 205ºC±10ºC |
| 20ºC±5ºC | 5ºC±5ºC | 130ºC±5ºC | 110ºC±10ºC | 240ºC±5ºC | 210ºC±10ºC |
| 25ºC±5ºC | 10ºC±5ºC | 135ºC±5ºC | 115ºC±10ºC | 245ºC±5ºC | 215ºC±10ºC |
| 30ºC±5ºC | 15ºC±5ºC | 140ºC±5ºC | 120ºC±10ºC | 250ºC±5ºC | 220ºC±10ºC |
| 35ºC±5ºC | 20ºC±5ºC | 145ºC±5ºC | 125ºC±10ºC | 255ºC±5ºC | 225ºC±10ºC |
| 40ºC±5ºC | 25ºC±5ºC | 150ºC±5ºC | 130ºC±10ºC | 260ºC±5ºC | 230ºC±10ºC |
| 45ºC±5ºC | 30ºC±5ºC | 155ºC±5ºC | 130ºC±10ºC | 265ºC±5ºC | 235ºC±10ºC |
| 50ºC±5ºC | 35ºC±5ºC | 160ºC±5ºC | 135ºC±10ºC | 270ºC±5ºC | 240ºC±10ºC |
| 55ºC±5ºC | 40ºC±5ºC | 165ºC±5ºC | 140ºC±10ºC | 275ºC±5ºC | 245ºC±10ºC |
| 60ºC±5ºC | 45ºC±5ºC | 170ºC±5ºC | 145ºC±10ºC | 280ºC±5ºC | 250ºC±10ºC |
| 65ºC±5ºC | 50ºC±5ºC | 175ºC±5ºC | 150ºC±10ºC | 285ºC±5ºC | 255ºC±10ºC |
| 70ºC±5ºC | 55ºC±5ºC | 180ºC±5ºC | 155ºC±10ºC | 290ºC±5ºC | 260ºC±10ºC |
| 75ºC±5ºC | 60ºC±5ºC | 185ºC±5ºC | 155ºC±10ºC | 295ºC±5ºC | 265ºC±10ºC |
| 80ºC±5ºC | 65ºC±5ºC | 190ºC±5ºC | 160ºC±10ºC | 300ºC±5ºC | 270ºC±10ºC |
| 85ºC±5ºC | 70ºC±5ºC | 195ºC±5ºC | 165ºC±10ºC | Or according to client's request | |
| 90ºC±5ºC | 75ºC±5ºC | 200ºC±5ºC | 170ºC±10ºC | ||
