| 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k | 저항 공차: | ± 1%, ± 2%, ± 3%, ± 5%, ± 10% |
|---|---|---|---|
| 재료 계수: | 2500 ~ 5000K | 산란 계수: | ≥0.8mw/°C |
| 열 시간 상수: | ≤25s | 작동 온도: | -40°C~+250°C |
| 정격 출력: | 50mW | 리드선 종류: | #24 30# 2651, UL4411 28# |
| 온도 범위: | -50~500℃ | 정확도 등급: | A급(0.1),B급(0.3),2B급(0.5),1/3B급(0.1) |
| 프로브 직경: | 3mm~16mm | 보호 수준: | IP68 |
| 열 시간 상수: | 0.5S | 리드선 옵션: | 3심 은색 사불화물 차폐선, 실리콘 와이어, 3심 고온 와이어, 4불소 와이어 |
| 스위치 유형: | 자동 재설정 또는 수동 재설정 | ||
| 강조하다: | 10K thermistor temperature sensor probe,3950b NTC temperature sensing probe,thermistor probe with high accuracy |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

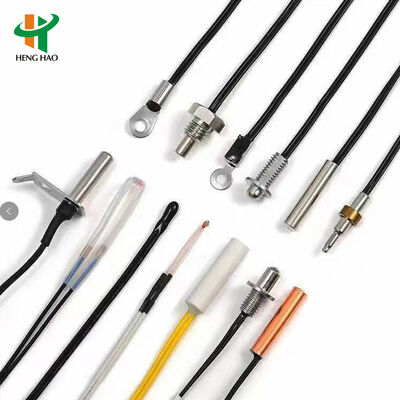

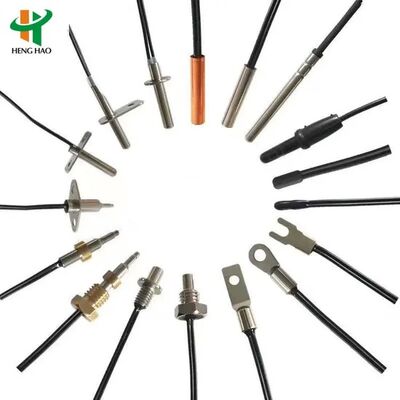

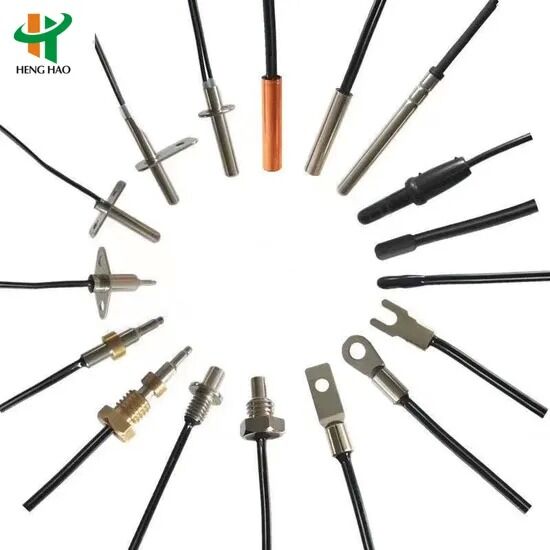

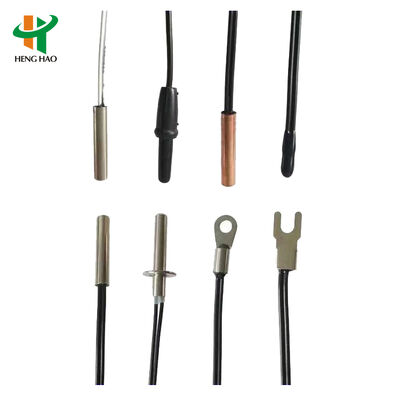

| Case and head | Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals | |

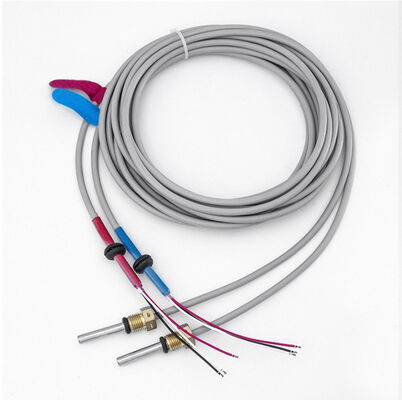

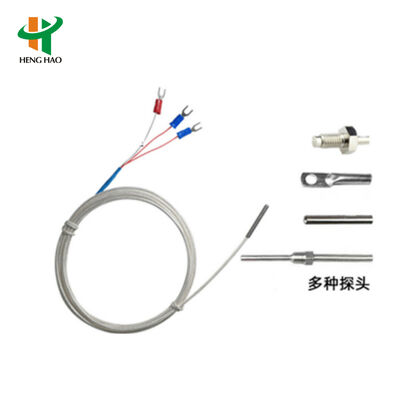

| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50, PT1000, K, E, J, T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |
| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1) |
| Temperature probe | 4*30mm, or according to client's request to design. |
| Thermal time constant | 0.5S |
| Lead wire |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC) |
| Dia | 3mm~16mm |
| Terminal | Y type, Pin, XH2.54 or according to client's request. |
| Level of protection | IP68 |
