| 모델번호: | NTC | 연락처: | 비접촉식 |
|---|---|---|---|
| 출력 신호: | 서미스터 | 생산 과정: | 주입 |
| 재료: | 저항성 염화리튬 | IP 등급: | IP65 |
| 헤드 유형: | 금속 또는 플라스틱 튜브 | 비 가치: | 3950K 3435K 3977K PT100 |
| 연락처 유형: | 일반적으로 닫히거나 일반적으로 열려 있습니다 | 스위치 유형: | 자동 재설정 또는 수동 재설정 |
| 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k | 작동 온도: | -40°C~+250°C |
| 정격 출력: | 50mW | 열 시간 상수: | ≤25s |
| 산란 계수: | ≥0.8mw/°C | ||
| 강조하다: | PT100 temperature sensor probe,PT1000 platinum resistor sensor,10K NTC thermistor sensor |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

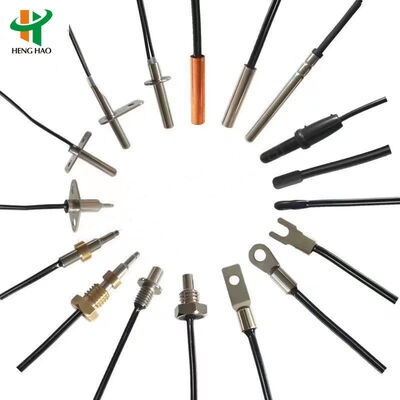

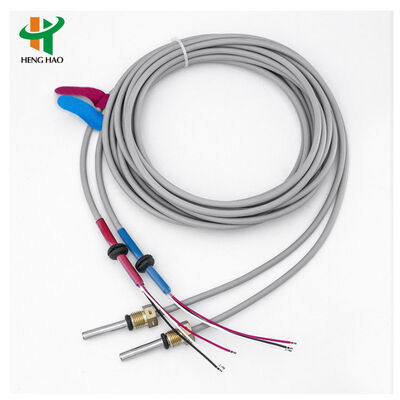

| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50, PT1000, K, E, J, T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |
| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1) |
| Temperature probe size | 4*30mm, or according to client's request to design |
| Thermal time constant | 0.5S |
| Lead wire options |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC) |
| Diameter | 3mm~16mm |
| Terminal options | Y type, Pin, XH2.54 or according to client's request |
| Level of protection | IP68 |
