| 모델번호: | NTC | 연락처: | 비접촉식 |
|---|---|---|---|
| 출력 신호: | 아날로그 유형 | 생산 과정: | 주입 |
| 재료: | 저항성 염화리튬 | IP 등급: | IP65 |
| 수명주기: | 100000 사이클 | 전압: | 250V |
| 현재의: | 16A | 연락처 유형: | 일반적으로 닫히거나 일반적으로 열려 있습니다 |
| 스위치 유형: | 자동 재설정 또는 수동 재설정 | 공칭 저항: | 1K,2K,5K,8K,10K,15K 50K~100K |
| 재료 계수: | 2500 ~ 5000K | 작동 온도: | -30°C~+120°C |
| 정격 출력: | 50mW | ||
| 강조하다: | OEM PT100 temperature sensor,NTC thermistor with warranty,PT1000 electrical temperature probe |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25(nominal resistance value) | 1K,2K,5K,8K,10K,15K 50Kto 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫(dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T(thermal time constant) | ≤25S | Static in the air |
| Ta(Working temperature) | -30ºC~+120ºC | |
| Pn (rated power) | 50mw | within working temperature |

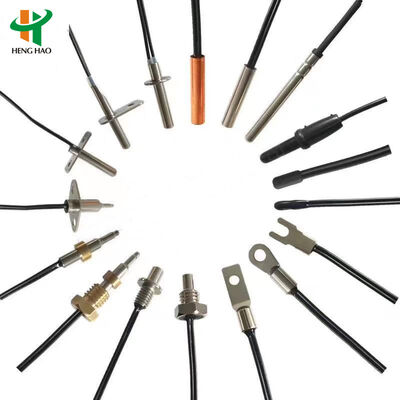

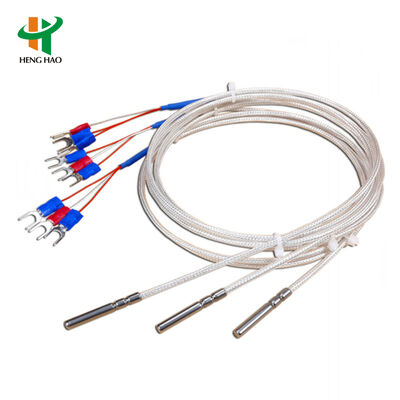

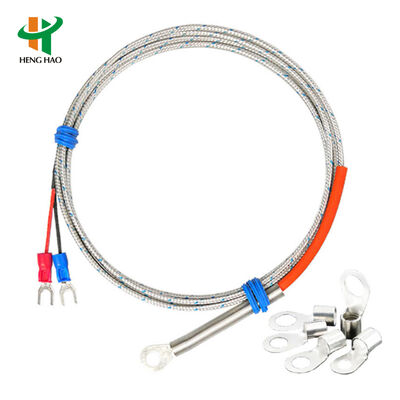

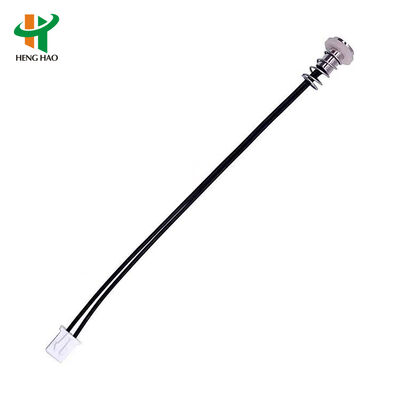

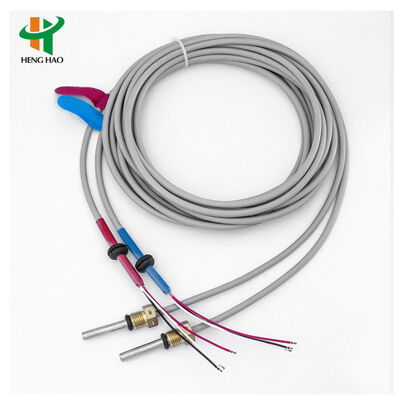

| Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals | |
