| 모델번호: | NTC | 출력 신호: | 디지털 방식 |
|---|---|---|---|
| 생산 과정: | 에폭시 | 재료: | 플라스틱 금속 또는 구리 |
| 측정 매체: | 온도 | NTC 가치: | 3950K 3977K 3435K 3900K |
| PT 가치: | PT100, PT500, PT1000 | 와이어 크기: | #26 #24 #22 2651 2468 1332... |
| 터미널 유형: | 2.54, 고객의 요청에 따른 pH2.0 | 온도 범위: | -10-500c |
| 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k | 재료 계수: | 2500 ~ 5000K |
| 산란 계수: | ≥0.8mw/°C | 열 시간 상수: | ≤25s |
| 작동 온도: | -40°C~+250°C | ||

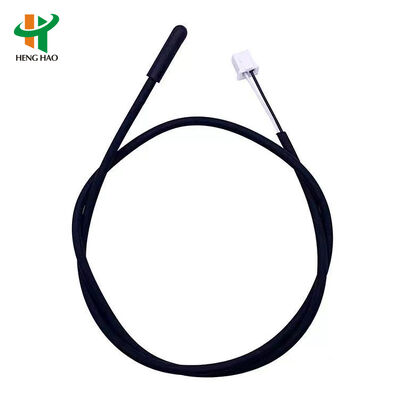

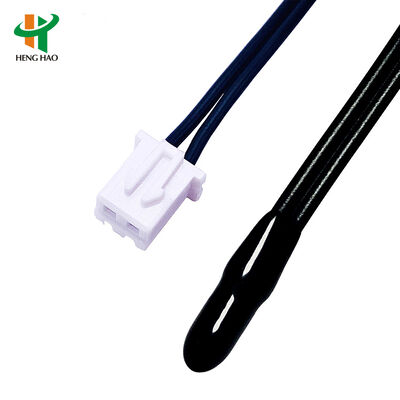

| 강조하다: | PT100 temperature sensor wire harness,NTC temperature probe sensor,thermistor temperature sensor with warranty |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | Within working temperature |
| Product name | Specification |
|---|---|
| PT100 temperature sensor (Thermocouples, hot resistance) | |
| Graduation number | PT100, CU50, PT1000, K, E, J, T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |

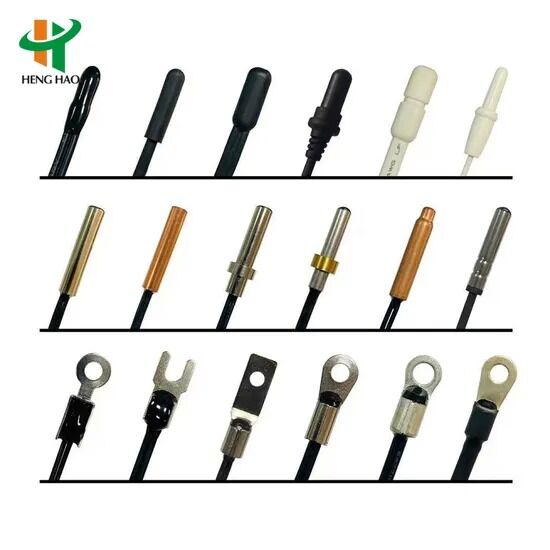

| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1) |
| Temperature probe size | 4*30mm, or according to client's request to design |
| Thermal time constant | 0.5S |
| Lead wire options |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC) |
| Diameter | 3mm~16mm |
| Terminal options | Y type, Pin, XH2.54 or according to client's request |
| Level of protection | IP68 |
