| 모델번호: | NTC | 연락처 유형: | 비접촉식 |
|---|---|---|---|
| 출력 신호: | 디지털 방식 | 생산 과정: | 정상 와이어 와이드 |
| 재료: | 저항성 염화리튬 | 측정 매체: | 습기 |
| IP 등급: | IP68 | 수명주기: | 100000 사이클 |
| 전압 및 전류: | 9V 1A | 스위치 유형: | 자동 재설정 또는 수동 재설정 |
| 사양: | 12*16 | 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k |
| 재료 계수: | 2500 ~ 5000K | 작동 온도: | -40°C~+250°C |
| 정격 출력: | 50mW | ||
| 강조하다: | RTD temperature sensing probe,NTC thermistor temperature sensor,resistance temperature detector probe |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

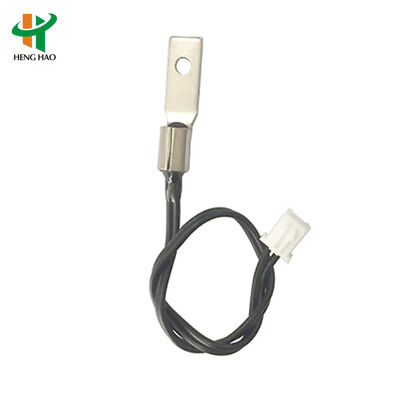

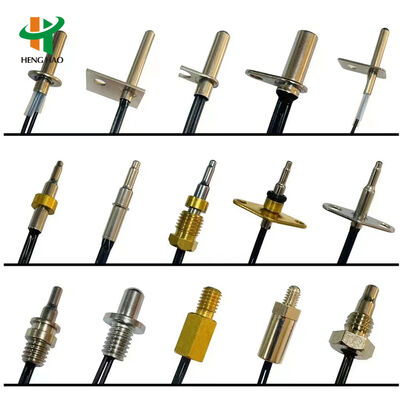

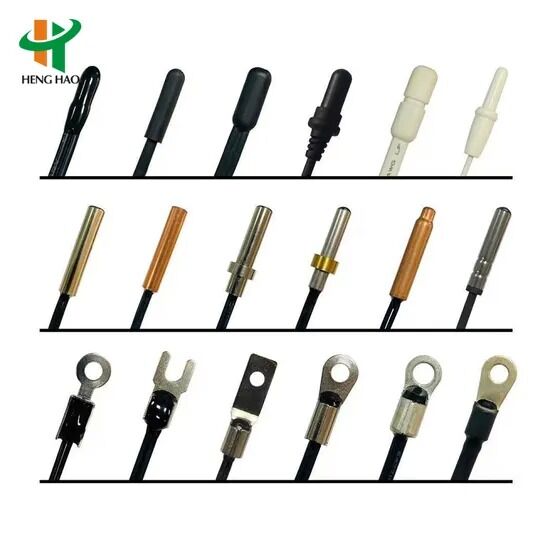

| Case and head | Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals | |
