| 모델번호: | NTC | 출력 신호: | 아날로그 유형 |
|---|---|---|---|
| 생산 과정: | 주입 | 재료: | 알루미나 |
| 측정 매체: | 습기 | IP 등급: | IP68 |
| 수명주기: | 100000 사이클 | 전압 및 전류: | 9V1a |
| 연락처 유형: | 일반적으로 닫히거나 일반적으로 열려 있습니다 | 스위치 유형: | 자동 재설정 또는 수동 재설정 |
| 사양: | 12*16 | 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k |
| 저항 변화: | ± 1, ± 2, ± 3, ± 5, ± 10 | 재료 계수: | 2500 ~ 5000K |
| 작동 온도: | -40°C~+250°C | ||
| 강조하다: | PT100 temperature probe,platinum resistor sensor,NTC thermistor temperature probe |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25(nominal resistance value) | 5K,8K,10K,15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫(dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T(thermal time constant) | ≤25S | Static in the air |
| Ta(Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

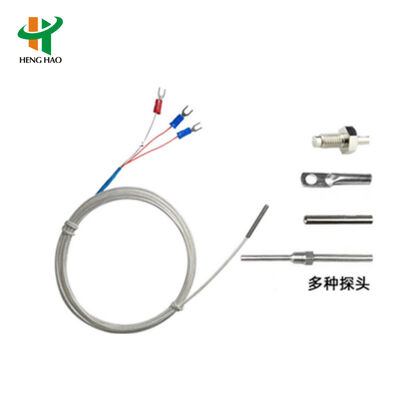

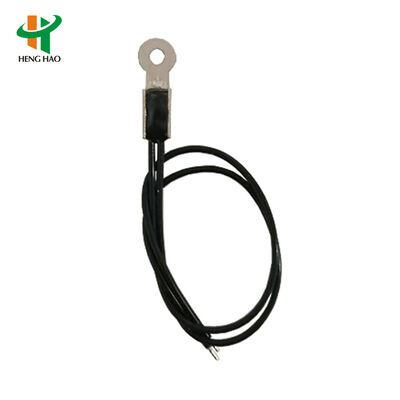

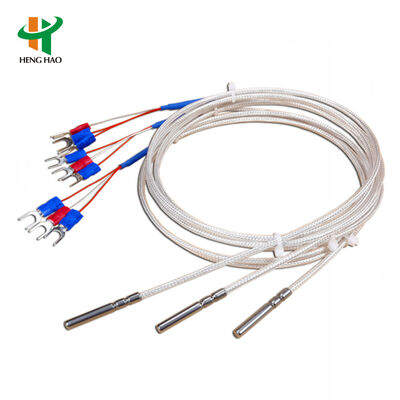

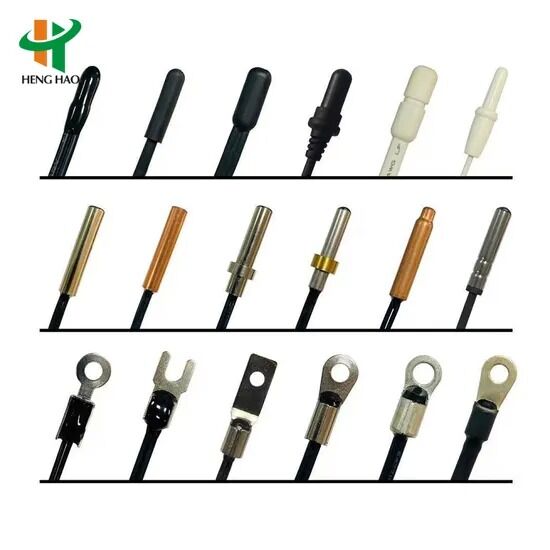

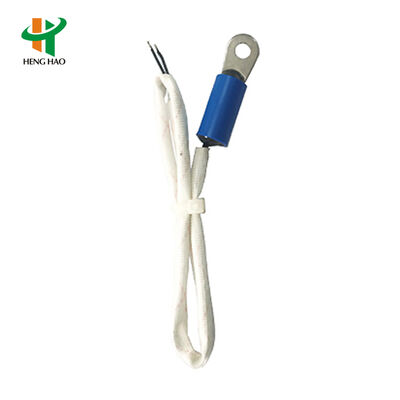

| Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals |
