| 모델번호: | NTC | 연락처 유형: | 일반적으로 닫히거나 일반적으로 열려 있습니다 |
|---|---|---|---|
| 스위치 유형: | 자동 재설정 또는 수동 재설정 | 운송 패키지: | 2000pcs/카톤 |
| 사양: | 12*16 | 공칭 저항: | 5k, 8k, 10k, 15k ~ 100k |
| 저항 공차: | ± 1, ± 2, ± 3, ± 5, ± 10 | 재료 계수: | 2500 ~ 5000K |
| 산란 계수: | ≥0.8mw/°C | 열 시간 상수: | ≤25s |
| 작동 온도: | -40°C~+250°C | 정격 출력: | 50mW |

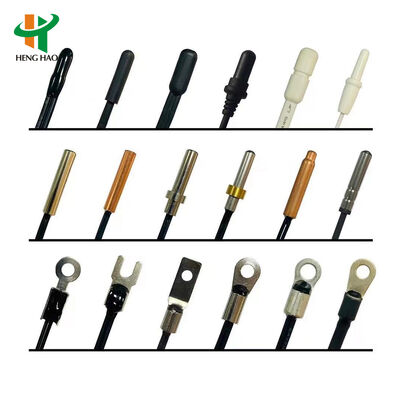

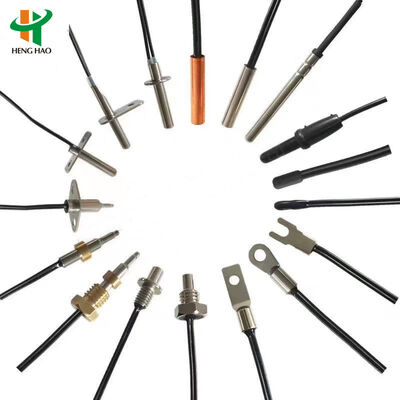

| 케이스 유형: | 포크 헤드, O링 헤드, 물방울 헤드, 금속 케이스, 나사산 구리 케이스, 주입 헤드 | 리드 와이어: | #24 30# 2651, UL4411 28#, 이중 배선 도체 |
| 터미널 유형: | 요구 사항에 따라 리벳을 박을 수 있습니다. | ||

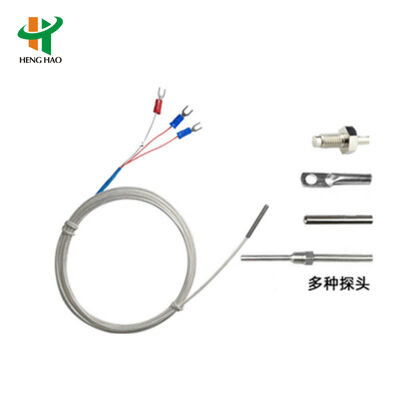

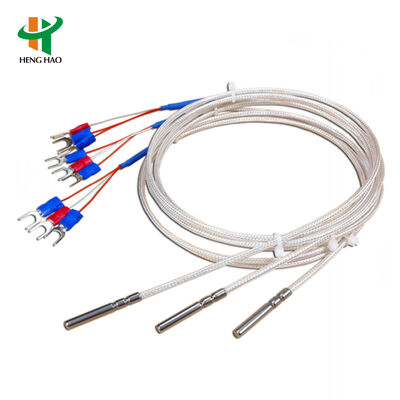

| 강조하다: | PT100 temperature sensor platinum resistor,NTC thermistor temperature sensor,TP1000 thermistor platinum resistor |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | Within working temperature |

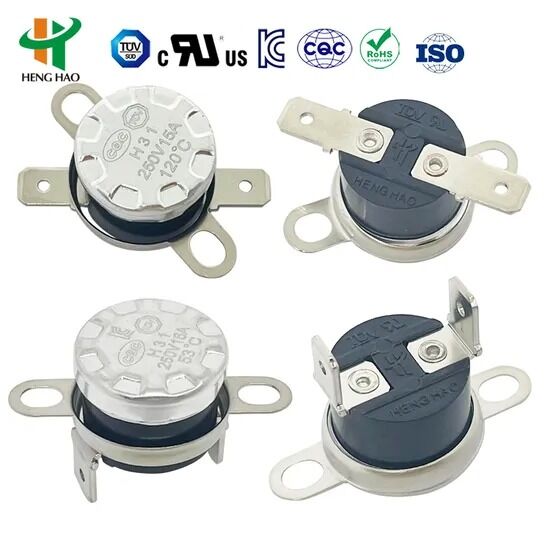

Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.
Note: This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
Auto reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
Used as temperature control for household electric appliances and widely applied in:
| Open temp. | Reset temp. | Open temp. | Reset temp. | Open temp. | Reset temp. |
|---|---|---|---|---|---|
| -20ºC±5ºC | 5ºC±5ºC | 95ºC±5ºC | 80ºC±5ºC | 205ºC±5ºC | 175ºC±10ºC |
| -15ºC±5ºC | 5ºC±5ºC | 100ºC±5ºC | 80ºC±10ºC | 210ºC±5ºC | 180ºC±10ºC |
| -10ºC±5ºC | 5ºC±5ºC | 105ºC±5ºC | 85ºC±10ºC | 215ºC±5ºC | 185ºC±10ºC |
| 0ºC±5ºC | -10ºC±5ºC | 110ºC±5ºC | 90ºC±10ºC | 220ºC±5ºC | 190ºC±10ºC |
| 5ºC±5C | -5ºC±5ºC | 115ºC±5ºC | 95ºC±10ºC | 225ºC±5ºC | 195ºC±10ºC |
| 10ºC±5ºC | 0ºC±5ºC | 120ºC±5ºC | 100ºC±10ºC | 230ºC±5ºC | 200ºC±10ºC |
| 15ºC±5ºC | 5ºC±5ºC | 125ºC±5ºC | 105ºC±10ºC | 235ºC±5ºC | 205ºC±10ºC |
| 20ºC±5ºC | 5ºC±5ºC | 130ºC±5ºC | 110ºC±10ºC | 240ºC±5ºC | 210ºC±10ºC |
| 25ºC±5ºC | 10ºC±5ºC | 135ºC±5ºC | 115ºC±10ºC | 245ºC±5ºC | 215ºC±10ºC |
| 30ºC±5ºC | 15ºC±5ºC | 140ºC±5ºC | 120ºC±10ºC | 250ºC±5ºC | 220ºC±10ºC |
Or according to client's request
